Home > Products > Head-of-Wall Deflection Systems > Seismic Drift Track

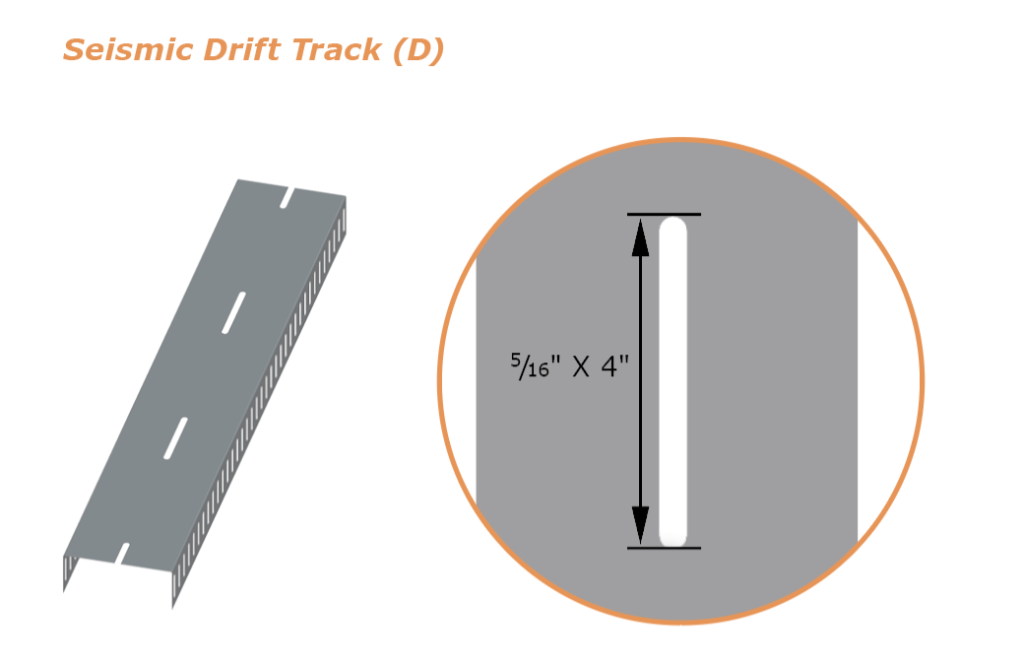

Seismic Drift Track

SCAFCO Seismic Drift Track (D) allows for lateral movement of the main building structure, while still accomodating head-of-wall deflection and fire ratings for interior and exterior walls. The Seismic Drift Track comes with an extruded metal insert that aids in the connection of the track to the main structure.

Features

  • Fire-rated deflection system
  • UL Classified in over 80 approved fire-rated systems
  • Standard Slotted Track allows up to 1½” of vertical movement
  • Custom shapes and slot sizes available
  • Custom widths and thicknesses available
  • Positive attachment provided for wall strength
  • Absorbs head-of-wall and floor extension or compression movement
  • Integrated with traditional wall systems
  • Easy installation reduces labor costs

thumbnail of scafco-slotted-track-catalog

Material / Product Specification

Nonstructural (Drywall) Products:

  • 18-30 mil: 33 ksi
  • 25EQ: 50 ksi
  • 20EQ, 30EQD: 57 ksi…………ASTM A1003/A653, C645

Structural Framing Products:

  • 33-43 mil: 33ksi
  • 33EQS, 43EQS: 57 ksi
  • 54-127 mil: 50 ksi…………ASTM A1003/A653, C955

Coating Specification

Nonstructural (Drywall) Products:

  • 25EQ, 20EQ, 30EQD, 18-30 mil: G40…………ASTM A1003/A653, C645

Structural Framing Products:

  • 33EQS, 43EQS, 33-97 mil: G60…………ASTM A1003/A653, C955

Note: Contact SCAFCO for heavier coating thickness availability.

Gallery

UL Ratings

UL Head-of-Wall Joint Systems Numbers
HW-D-0003 HW-D-0076 HW-D-0170 HW-D-0241 HW-D-0275 HW-D-0016 HW-D-0077
HW-D-0173 HW-D-0242 HW-D-0277 HW-D-0020 HW-D-0082 HW-D-0183 HW-D-0243
HW-D-0278 HW-D-0021 HW-D-0083 HW-D-0184 HW-D-0246 HW-D-0293 HW-D-0024
HW-D-0084 HW-D-0185 HW-D-0259 HW-D-0313 HW-D-0025 HW-D-0085 HW-D-0186
HW-D-0260 HW-D-0322 HW-D-0029 HW-D-0087 HW-D-0190 HW-D-0263 HW-D-0341
HW-D-0031 HW-D-0088 HW-D-0193 HW-D-0265 HW-D-0034 HW-D-0089 HW-D-0194
HW-D-0271 HW-D-0036 HW-D-0091 HW-D-0195 HW-D-0272 HW-D-0042 HW-D-0099
HW-D-0205 HW-D-0043 HW-D-0101 HW-D-0210 HW-D-0044 HW-D-0102 HW-D-0217
HW-D-0045 HW-D-0106 HW-D-0218 HW-D-0046 HW-D-0107 HW-D-0047 HW-D-0108
HW-D-0048 HW-D-0111 HW-D-0049 HW-D-0134 HW-D-0054 HW-D-0136 HW-D-0062
HW-D-0137 HW-D-0063 HW-D-0144 HW-D-0067 HW-D-0146 HW-D-0068 HW-D-0152
HW-D-0069 HW-D-0154 HW-D-0071 HW-D-0160 HW-D-0162 HW-D-0162 HW-D-0073
HW-D-0167
