Clip Central

Deflection Clips
Deflection Clips DPLC2 – Bypass Slab Drift Clip DPLS2 – Bypass Slab Drift Strut DESC – Exterior Head-of-Wall Drift Clip PLC2 – Bypass Slab Slide Clip STP – Bypass Slab Top Plate PLS2 – Bypass Slab Slide Strut PLC4 – Bypass Slab Slide Clip PLS4 – Bypass Slab Slide Strut ESC – Exterior Head-of-Wall Deflection Slide Clip
Secure Clips
Secure Clips FA – Secure Floor Anchor Clip BC – Secure Bridge Clip MB – Multi-Use Secure Clip PLC4 – Bypass Slab Slide Clip AS – Load-Bearing Secure Strut AC – Bypass Slab Secure Clip MA – Multi-Use Secure Clip MC – Multi-Use Secure Clip

DESC – Exterior Head-of-Wall Drift Clip

DESC Clip

Features & Benefits

  • Insert allows for 2” total vertical deflection and 2” lateral drift
    • Greater than 2” are available
  • Loads based on #10 screws
    • Screws are provided
  • Large insert piece for easy installation
  • Pre-punched guide holes
  • Transfers horizontal loads into structure
  • Provides positive attachment at each stud

More Info

PLC4 – Bypass Slab Slide Clip

PLC4 Clip

Features & Benefits

The PLC4 Bypass Clip has been engineered to provide the greatest allowable loads in the industry. With input from the contractor, the clip is also designed to be user friendly and save labor. The following features help make this product the leader in the industry:

Movement

  • Deflection slots
    • 2¼" slots (allows for 2" of total deflection)
    • 3 slots for multiple screw configurations
  • Proprietary Screws
    • Shouldered screws are provided for ease of installation

Strength

  • Stiffening lips and ribs
    • Increased compression strength for high wind loads
    • Stiffened clip face for ease of installation
  • Support gussets
    • Support gussets for transfer of tension forces from connection through the supporting structure

Versatility

  • Secure attachment
    • 4 pre-drilled holes for optional secure attachment
    • One clip for multiple uses to save labor on the job site
  • Pre-punched holes
    • Pre-punched holes for multiple attachment methods to structure

Safety

  • Coped corners
    • Fewer sharp corners for reduced possibility of field injury

More Info

PLS2 – Bypass Slab Slide Strut

PLS2 Clip

Features & Benefits

  • Insert allows for 1 ½” total vertical deflection
    • Greater than 1 ½” are available
  • Loads based on #10 screws
    • Screws are provided
  • Large insert piece for easy installation
  • Pre-punched guide holes
  • Transfers horizontal loads into structure
  • Maintains lateral rigidity
  • Eliminates bridging within 12” of support connection
  • Thicker steel for improved lateral resistance for in-plane seismic forces and strengthened weld capacity to the structure

More Info

STP - Bypass Slab Top Plate

STP Clip

Features & Benefits

  • Unique insert allows for 2" total vertical deflection
  • Maintains lateral rigidity
  • Large insert piece for easy installation
  • Meets or exceeds building code criteria
  • Pre-punched holes for #12 framing screws
    • Screws are provided

More Info

PLC2 - Bypass Slab Slide Clip

PLC2 Clip

Features & Benefits

  • Insert allows for 1 ½” total vertical deflection
    • Deflection greater than 1 ½” is available
  • Loads based on #12 screws
    • Screws are provided
  • Large insert piece for easy installation
  • Pre-punched guide holes
  • Transfers horizontal load into structure
  • Maintains lateral rigidity
  • Eliminates bridging within 12” of support connection
  • Thicker steel from improved lateral resistance for in-plane seismic forces and strengthened weld capacity to the structure
More Info

DPLS2 - Bypass Slab Drift Strut

DPLS2 Clip

Features & Benefits

  • Insert allows for 2” total vertical deflection and 2” lateral drift
    • Greater than 2” are available
  • Loads based on #10 screws
    • Screws are provided
  • Large insert pieces for easy installation
  • Pre-punched guide holes
  • Transfers horizontal loads into structure
More Info

DPLC2 - Bypass Slab Drift Clip

DPLC2 Clip

Features & Benefits

  • Insert allows for 2” total vertical deflection and 2” lateral drift
    • Greater than 2” are available
  • Loads based on #10 screws
    • Screws are provided
  • Large insert pieces for easy installation
  • Pre-punched guide holes
  • Transfers horizontal loads into structure
More Info

MA - Multi-Use Secure Clip

MA Clip

Features & Benefits

  • Variety of lengths available
  • Loads based on #10 screws
  • Pre-punched guide holes
  • No labor used cutting scrap or angle
More Info

AC - Bypass Slab Secure Clip

AC Clip

Features & Benefits

  • Pre-punched guide holes for quick attachment to structure and stud
  • Available in a variety of different lengths for all requirements and construction tolerances
  • Replaces the expensive traditional method of bracing
  • Produced from thicker steel to improve welded attachments
More Info

AS - Load-Bearing Secure Strut

AS Clip

Features & Benefits

  • Variety of lengths available
  • Transfers horizontal load into structure
  • Maintains lateral rigidity
  • Eliminates bridging within 12" of support connection
More Info

MB - Multi-Use Secure Clip

MB Clip

Features & Benefits

  • Variety of lengths available
  • Loads based on #10 screws
  • Pre-punched guide holes
  • No labor used cutting scrap or angle
More Info

BC - Secure Bridge Clip

BC Clip

Features & Benefits

  • Pre-punched guide holes
  • No welding or cutting scrap material required
  • Loads based on #10 screws
    • Screws are provided
  • Replaces the expensive traditional method of bracing
More Info

FA - Secure Floor Anchor Clip

FA Clip

Features & Benefits

  • Available in 68 mil and 118 mil
  • Variety of lengths available
  • Pre-punched guide holes
  • Optional plate washer for heavy duty applications
More Info

WST – Web Stiffener Track

WST Clip

Features & Benefits

  • Pre-punched guide holes for quick attachment to structure and stud
  • Available in a variety of different lengths to fit all standard studs and joist sizes
  • Prevents web crippling
  • One-piece assembly
More Info

KB – Wall Support Backing Kwik-Back

KB Clip

Features & Benefits

  • Loads based on #8 screws
    • Screws are provided
  • Pre-punched guide holes
  • Folded tabs for consistent wood positioning
More Info

TB – Solid Track Blocking

TB Clip

Features & Benefits

  • A variety of different lengths offered to fit all standard stud and joist sizes
  • Available in 12”, 16”, and 24” spacing (special lengths available)
  • Pre-punched quide holes for quick attachment
  • One-piece assembly
More Info

FTB – Fire Track Blocking

FTB Clip

Features & Benefits

  • A variety of different lengths offered to fit all standard stud and joist sizes
  • Available in 12”, 16”, and 24” spacing
  • Pre-punched guide holes for quick attachment
  • One-piece assembly
  • Fills the whole stud cavity
More Info

NS – Notched Stud Backing

NS Clip

Features & Benefits

  • Available in widths of 4", 6", and 8"
  • Available in 12", 16", and 24" stud spacing
  • Excellent for heavy load conditions
  • Pre-cut notches for flange attachment
  • Pre-punched guide holes
  • Eliminates field cutting
  • Provides bracing and bridging support
More Info

NT – Notched Track Backing

NT - Notched Track Backing

Features & Benefits

  • Available in widths of 4", 6", and 8"
  • Available in 12", 16", and 24" stud spacing
  • Pre-cut notches for flange attachment
  • Eliminates field cutting
  • Provides bracing and bridging support
More Info

Kwik-Bridge Punch Systems

Kwik-Bridge

Features & Benefits

  • Eliminates use of clip angles, bridging clips, and welding
  • No pre-determined stud layout required
  • Faster installation saving up to 40% in combined labor and material costs
  • Bend tabs to 90° and attach cold roll channel
More Info

ELEV – Elevator Stud Splice Clip

ELEV - Elevator Stud Splice Clip

Features & Benefits

  • Available in widths of 3.5" to 6"
  • Other widths available upon request
  • Available in standard 24" lengths
  • Pre-punched guide holes
  • Customizes lengths without additional cutting
  • Splice design calculations available, contact Technical@SCAFCO.com
More Info

Ponywall Support

Ponywall Support

Features & Benefits

  • Pre-punched guide holes
  • Standard heights are 34", 48", and 60"
  • Custom heights available
  • Welded construction
More Info

ESC - Exterior Head-of-Wall Deflection Slide Clip

ESC Clip

Features & Benefits

  • Insert allows for 1 ½” total vertical deflection
    • Greater than 1 ½” are available
  • Loads based on #10 screws
    • Screws are provided
  • Large insert piece for easy installation
  • Pre-punched guide holes
  • Transfers horizontal loads into structure
  • Maintains lateral rigidity
  • Provides positive attachment at each stud

More Info

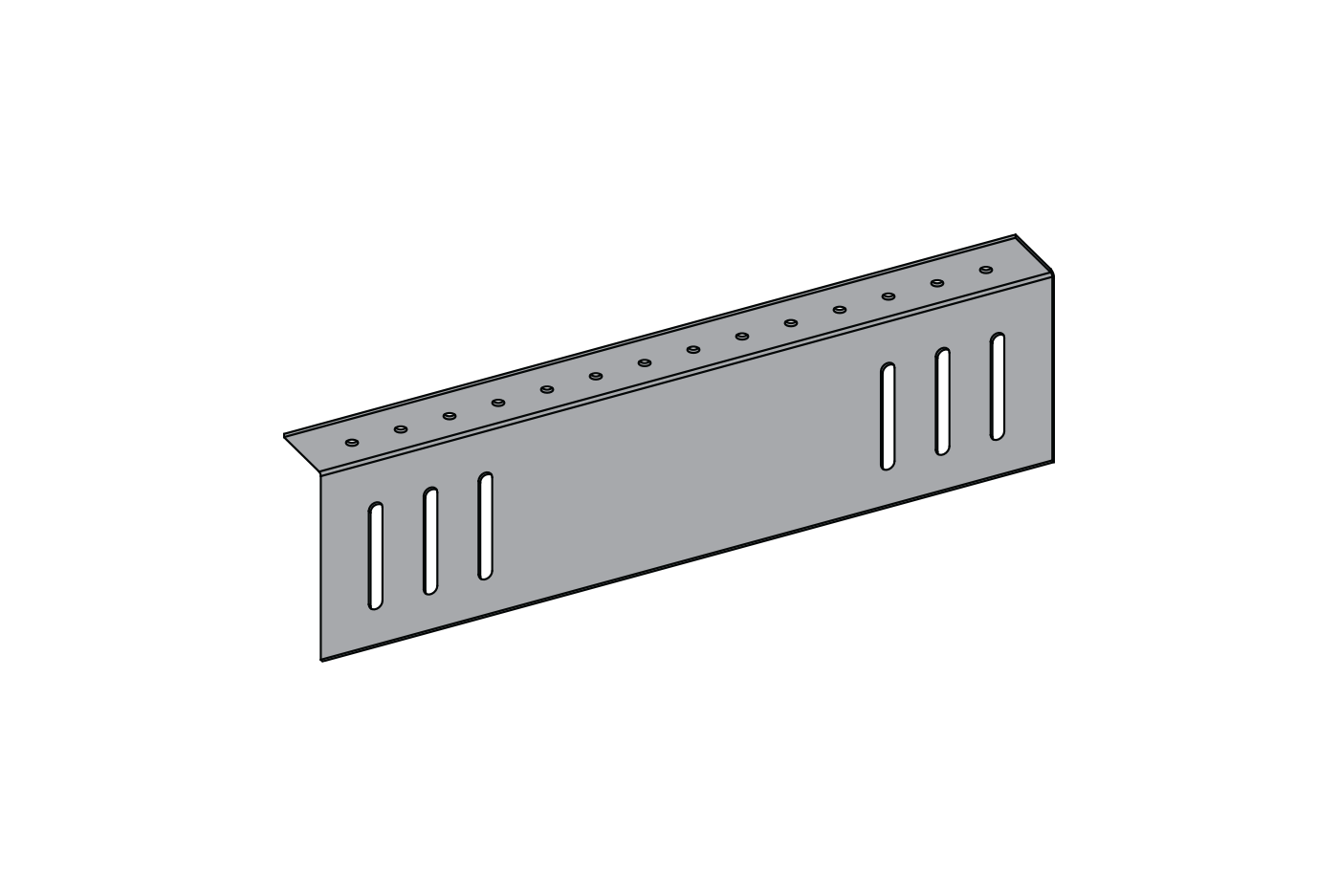

PLS4 – Bypass Slab Slide Strut

Features & Benefits

  • Insert allows for 2” total vertical deflection
    – Deflection of 1″ up and 1″ down
  • Loads based on proprietary screws
    – #14 shouldered screws are provided for ease of installation
  • Large insert piece for easy installation
  • Pre-punched guide holes
  • Transfers horizontal load into structure
  • Maintains lateral rigidity

More Info

MC – Multi-Use Secure Clip

MC Clip

Features & Benefits

  • Variety of lengths available
  • Loads based on #10 screws
  • Pre-punched guide holes
  • No labor used cutting scrap or angle
More Info
